Baling machine and wrapping machines are now a common type of feed-handling equipment used by farmers. The baling and wrapping machine can wrap all kinds of forage treated by a cortador de palha with plastic film, rope, or net.

The baled feed saves storage space, improves the nutrition of the feed, and facilitates long-distance transportation for farmers. And we have two types of baling machine and wrapping machines, TZ-70-70 and TZ-55-52, and this article is about the TZ-55-52 baler. Normally, before using the baler we can crush the forage with a chaff cutter. This is because the treated forage is easier to bale.

silage baling machine and wrapping machine working video

If you want to know more details about our silage baling machine and wrapping machines, please click Máquina enfardadeira de silagem | Máquina enfardadeira de silagem totalmente automática.

Brief Introduction to Baling Machine and Wrapping Machine

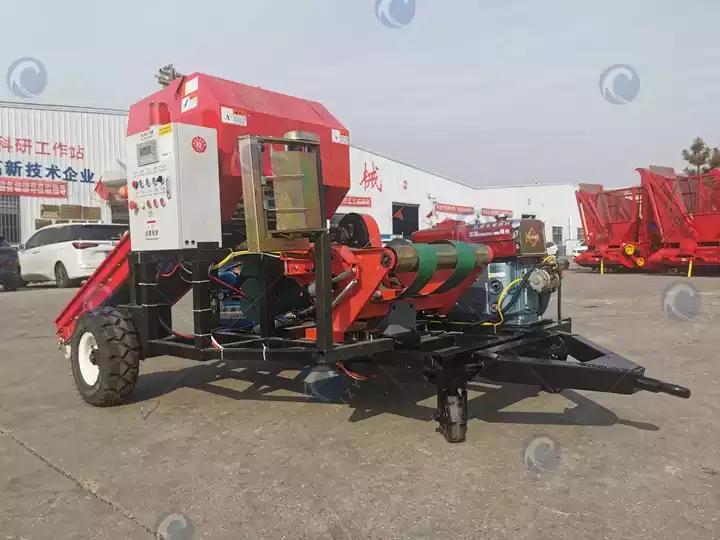

TZ-55-52 semi-automatic máquina de enfardamento matches with a 5.5kw motor and its dimensions are 1600x1450x1060mm. It is equipped with high quality, getting 30-50 bundles of grass per hour, and each bale is 30-90kg. This baling machine has 2-4 coated layers, and the weight of the Coated machine is 135kg. There is round baling with a film that can be stored for a long time.

Vídeo de trabalho do equipamento de enfardamento de feno

This hay baling equipment is to preserve green and juicy fodder (fresh corn straw, pasture, etc.) under anaerobic conditions (by microbial fermentation). At present, silage has been widely used in animal husbandry all over the world. It is an important machine for feeding ruminant livestock (cows, cattle, sheep, deer, horses, donkeys, etc.).

Application Scope of the Silage Baler Machine

Esse hay baling machine and wrapping machine é adequado para quase todos os tipos de silagem, palhas frescas ou secas de trigo, arroz, soja, milho, etc. E então podemos alimentar vacas, ovelhas, coelhos, veados, cavalos, porcos, camelos, etc.

Como instalar uma enfardadeira de silagem de milho?

First, is the installation of the corn silage baler machine. The red chip of the silage film is facing up and then fixed on the film conveying frame. Then you should use a fixture to adjust its angle. The distance between silage films should be proper. If the distance is too wide, it can be adjusted by two screws under the conveyor.

Second, place the rope to pass through the hole in the baling machine and wrapping machine.

Third, connect the wires. You should connect the three-phase electric wires to the inside of the control box. There are two-time adjusters including conveying rope and baling, which can be adjusted.

Fourth, the installation of the air pump. Connect the air pump motor to the power supply. Connect the air pipe to the machine, and open the vent switch. The air pressure during the operation should be maintained between 0.6 and 0.8Pa.

Verifique todas as peças da máquina cuidadosamente antes de usar e confirme se a máquina está funcionando na direção correta.

Processo de instalação da enfardadeira de silagem

Princípio de funcionamento da máquina enfardadeira

  • O operador usa a pá para colocar a palha na entrada.
  • After several minutes, the bundles will be finished under the force of ropes.
  • The user pushes the bundles forward and then presses a button, and bundles will be baled automatically.

Parâmetro técnico da máquina de enfardamento e embalagem

Modelo TS-55-52
Motor 5,5 kW
Dimensão 1600x1450x1060mm
Peso 380kg
Velocidade de operação 30-50 pacotes/h
Peso do fardo 30-90kg
Camada revestida 2-4 camadas
Eficiência revestida 12 segundos/fardo 2 camadas......
Peso da máquina revestida 135kg
Tipo de enfardamento Formato redondo com filme para armazenamento prolongado
Matéria-prima Adequado para quase todos os tipos de silagem, palhas de trigo, arroz, soja, milho, etc., frescas ou secas

Main Structure of the Hay Baler

  • Parte esmagadora
    The silage or grass is smashed by a smashing part, which destroys the hard stem segments on the surface of the straw by crushing, slitting, and squeezing them. Finally, the smashing part of the silage baling machine processes the straw which cannot be directly eaten by the livestock into filamentous type. Such forage can keep its original nutrients that are easy to digest and absorb for livestock. Cattle and sheep like this kind of forge very much. The straw after smashing is easy to bundle, improving the efficiency of fermentation and decomposition of crude fiber and improving palatability.
  • Parte de enfardamento
    A forragem é alimentada na câmara de trabalho da enfardadeira de forma rápida, uniforme e uniforme para compressão. Quando o peso de cada pacote atinge cerca de 80 kg e a roda de sinalização gira a uma velocidade constante, a alavanca da embreagem de enrolamento é puxada e a corda pode ser usada para enfardamento.
    Após o enfardamento, a corda é cortada e o usuário aciona a alça de abertura para a saída dos fardos. Desta forma, o processo de agrupamento é concluído.
  • Parte de embrulho
    Os fardos da enfardadeira de feno são colocados nas duas correias paralelas da máquina de embalar, e o interruptor de embrulho aciona os fardos girando a estrutura para girar. Os fardos esticam o filme plástico para embrulhar automaticamente. Em seguida, os usuários podem definir o número de camadas de revestimento (2 a 4 camadas).
 Estrutura da enfardadeira de silagem
Estrutura da enfardadeira de silagem

Máquina enfardadeira para embalagem de silagem vendida para Bangladesh

Our clients are from Bangladesh and clients contact us by browsing our YouTube channel. The customer is going to buy a machine and use it himself. Our sales managers learn about the client’s budget in the process of communicating with the client. So the sales manager recommended the small silage packing baler machine TZ-55-52.

Customers feel that this machine is suitable for their use. What’s more, the client wanted to pack the forage with nets and ropes. This type of machine can be used for both net and rope to meet customer needs. Finally, the customer decides to buy a baler wrapping machine. Below is the package delivery diagram.

Perguntas frequentes

What is the power of the machine?

A potência pode ser um motor diesel, motor a gasolina ou motor elétrico. Diferentes modelos de máquinas têm diferentes requisitos de energia.

What is the purpose of the baler wrapping machine?

Silagem seca ou úmida, ervas daninhas, palha.

How long can the packaged feed be stored?

2-3 anos.

Does the machine use an air compressor?

Necessidades totalmente automáticas, semiautomáticas não precisam de compressor de ar.
