Small peanut groundnut picking machine

Small peanut groundnut picking machine is a kind of mechanical equipment that can pick fruit automatically. The use of this equipment can help agricultural growers or operators to produce quickly. The peanut picking machine has the characteristics of low consumption, good fruit picking effect and low breaking rate.

This kind of groundnut picking machine is suitable for home use. Because it can meet people’s daily peanut processing need. Normally, before using this machine the peanut with stem need to be dried for about two days.

Brief introduction of small peanut picking machine

This article is about the small peanut groundnut picking machine. We have two types of peanut groundnut picking machines. One is the small dry peanut groundnut picking machine. And another is big size of peanut picker. The small size groundnut picker can process 800-100kg peanut per hour. And meanwhile, the picking rate of peanut picking machine can reach 99% and breaking rate and impurity rate is less than 1%. Also, there is an elevator with metal hook at the peanut outlet, you can hang a bag on it. So, it is convenient for us to collect the peanut.

The power of this machine can be electric motor or diesel engine. At the same time if you need we can install the base with wheels, which is convenient for you to move this peanut picker to everywhere. Besides peanut picking machines, we also have peanut harvesting machines. And working together with two machines can greatly improve work efficiency and work quality.

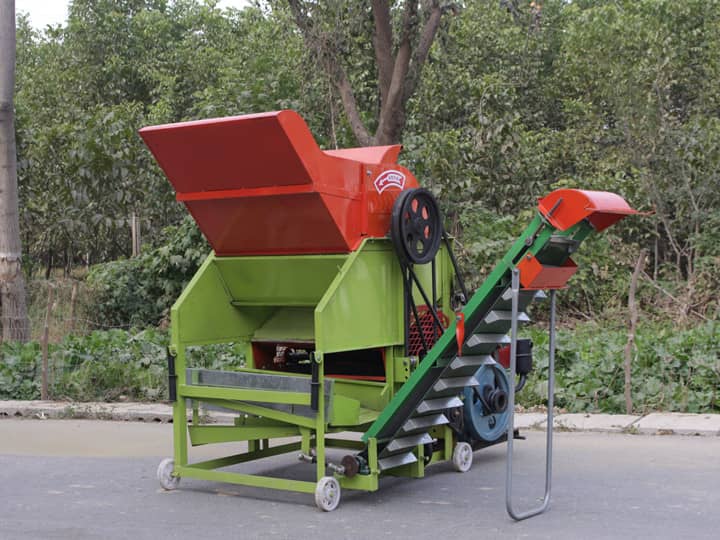

small peanut picking machine
small peanut picking machine

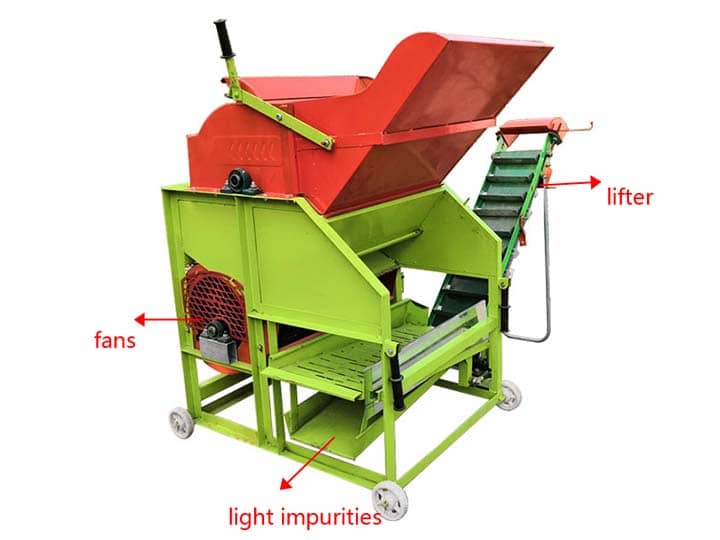

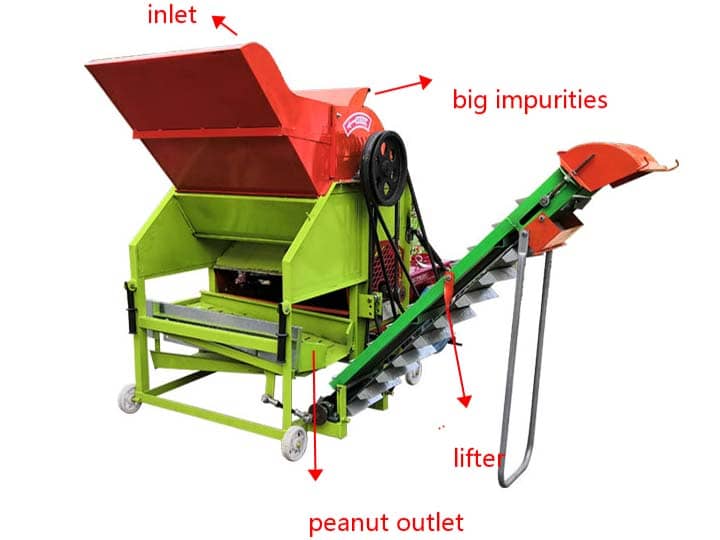

Structure of the groundnut picking machine

This small type groudnut picking machine mainly has inlet, fruit picking system, big impurities outlet, peanut outlet, light impurities outlets, lifter(elevator), fan and power.

What is the working flow of the peanut picker work?

  1. We need to dry the peanuts for two days before using the machine.
  2. When we use the machine, start the machine firstly and put the peanut with stem into the machine’s inlet.
  3. The peanut will enters the fruit picking system. The fruit picking system will separator the peanut from the stem and leaf.
  4. Then the fan will blow the stem, leaf and big impurities out through the big impurity outlet. And at the same time, fruit and heavier stalks (in small quantities) fall on the sorting screen.
  5. Next the fruit and a small amount of stalks, the mud block flows out from the outlet of the sorting screen. And the stalks and soil fall to the ground through the bottom sieve.
  6. Finally, the peanut friut will drop into the elevator. And elevator will deliver the peanut into the bag hanging from the elevator.

Working video of small groundnut picking machine

Working video of small groundnut picking machine

Parameter of the small dry peanut picking machine

Model5HZ-600
Size1960*1500*1370mm
Weight150Kg
Power7.5kw motor,10HP diesel engine
Capacity800-1000kg/h
Picking rate>99%
Breaking rate<1%
Impurity rate<1%
Parameter of the small dry peanut picking machine

Advantages of high output groundnut picking machine

  1. The whole high output peanut picking machine has a reasonable structure and is easy to move.
  2. This peanut picking machine has a high stem removal rate. All the peanut after processing without stem or leaf.
  3. Also, our small dry groudnut picking machine’s breaking rate is less 1%.
  4. High efficiency, our samll multifunctional peanut picking machine’s capacity can reach 800-100kg per hour. This output can meet the needs of most farmers.

How to maintain the peanut picking machine?

1. Before the small dry peanut picking machine works, all parts of the machine should be inspected to ensure that they are working properly.

2. Be sure to do a good job of waterproofing when not in use to avoid corrosion and damage to various parts due to rusting in contact with water.

3. For the wear-prone parts of the peanut picking machine, we should apply the lubricating oil  frequently to protect the normal use of the parts. Especially some exposed metal parts should be painted to prevent rusting.
