Kenaf jute hemp cutter extractor machine / Kenaf decorticator

hemp decorticator / hemp fiber removing machine

Brief introduction of hemp decorticator

Our hemp cutter machine is to use to extract the fiber of hemp,jute, kenaf, ramie etc. With two big wheels,machine is easy to move. The cleaning rate can reach 96% without any damage to the fiber itself.

Main structure of hemp decorticator

Kenaf decorticator is mainly composed of  frame, knife, knife plate, feeding mouth, security cover, double-roller,discharge conveyor belt etc.
The inner part of machine( different angles of rollers)
hemp-cutter-machine-5hemp-cutter-machine-6

Application of hemp decorticator

It can crush the kenaf stalk and get the skin quickly that is very clean. This hemp cutting machine can be be used for hemp, jute,ramie, kenaf etc.

Advantage of hemp decorticator

1.Compared with traditional peeling way , fresh hemp decorticator
can save much labor and time.
2.Two roller with oblique blades can greatly crush stalk, improving working efficiency.
3.High cleaning rate. The final fiber is very clean
4.High capacity. Its biggest capacity is 150m2/h

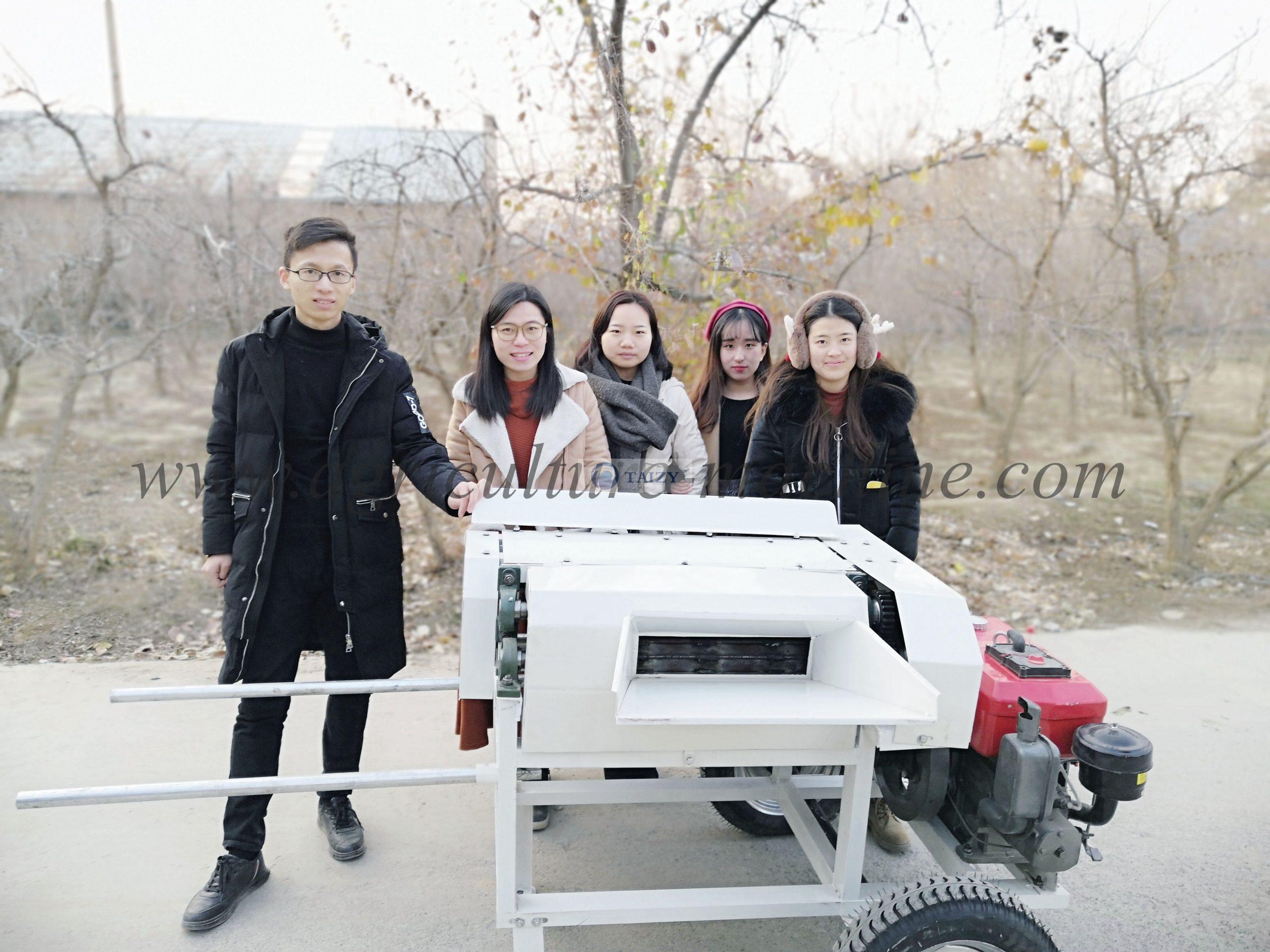

hemp-cutter-machine-1

Working principle of hemp decorticator

1.Operator puts the hemp into feeding hopper
2.The hemp goes into the middle of two roller
3.Oblique blades on the rollers powered by motor or diesel engine crush the stalk by constant rotation.
4.The stalks are fully crushed and fibers fly into the rob after several seconds

Matched Power of hemp decorticator

Kenaf decorticator machine works with 7.5kw motor or 10HP diesel engine.

Technical parameter of hemp decorticator

ModelSLHM-550
Rotary speed of hockey blade1000-1200r/min
Power of motor7.5Kw /(10HP desel engine)
Capacity150m2/h
Dimension1500*1400*1050mm
Weight255Kg
Dirt percentage<0.2%

Lastest successful case of hemp decorticator

case one

In February, 2019, we sold 1 sets hemp cutting machine to Poland with competitive price. He is a farmer and plants hemp in the recent years,wishing to extract the its fiber. The following picture is the dialogue between our sale manager and him.
hemp-cutter-machine-3hemp-cutter-machine
Actually, he contacted us in January and placed order from us in February. Our manager solved his problem with great patience and wanted to build a long partnership with him.

The packing pictures are as follow.

case two

At the beginning of May,we received an inquiry from the customer in Croatia, and he wanted to buy a hemp decorticator. Actually, he didn’t talk a  lot with our salesman. After confirming the information of the freight forwarder, he ordered one set hemp decorticator from us. We have many decorticators for hemp in stock, so we spent one day to pack and deliver his machine after receiving the payment.

FAQ

1.Why are the two roller of machine oblique?
Oblique two rollers can fully crush the hemp stalks, and separate it and fiber effectively.
2.What are the raw materials of this jute decorticator?
The raw material can be hemp, kenaf, ramie, jute etc.
3.Will the two roller damage the fiber?
No,it won’t damage the fiber because the blades on the roller are blunt.
4.What the final product can be used for?
It can make rope or cloth.
5.Is it suitable for wet and dry hemp?
Yes, it can
hemp-cutter-machine-4

Why do you choose us?

You may figure out why do you choose us?
This picture is the stock of hemp fiber extraction machine, and we almost sell more than1000 sets to other countries every year. Frankly, we can produce 500 sets monthly,fully meeting your demand.
