Hand-operated maize corn planter machine / peanut plant

planting corn / soy bean planting

Corn planter machine is used to plant various of crops such as corn, peanut, and we have different kinds of hand-operated planter with different capacities. They are light in weight and light in weight, and every farmer can afford it.

type one

Brief introduction of corn planter

It is hand-operated corn planter machine with double bins, and its capacity is 0.5acre/h, widely applying to sow maize, peanut, soybean, wheat, sorghum etc. This planter is mainly composed of feeding hopper, a big wheel, two handles, soil digger, soil cover part and seed sowing part.

Corn Planter
Corn Planter

Two persons are needed when operation, and it is easy to use and operate. The green axis outside the storage bin of the seeder control the seed dropping and screws off the green axis can change the storage bin. The spacing of sowing depends on the speed of operator.

Corn Planting Machine
Corn Planting Machine
Maize Planter
Maize Planter

Technical parameter of TZY-100

Name Seeder machine
Model TZY-100
Capacity 0.5acre/h
Size 1370*420*900
Weight 12kg

Working principle of corn planter machine

  1. The front person pulls the belt of the front wheel, and the back person pushes the machine to control the direction.
  2. Soil digger firstly digs the soil within certain depth.
  3. Then the seeds inside sowing device fall down the ground gradually following with the movement of two operators.
  4. Finally, the back little wheel covers the seeds by soil.
Corn Planter
Corn Planter

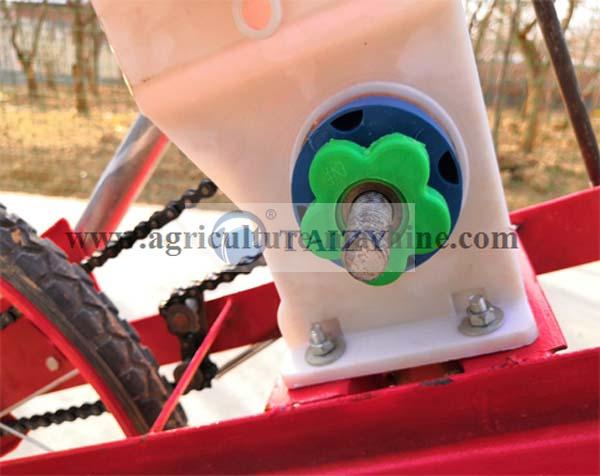

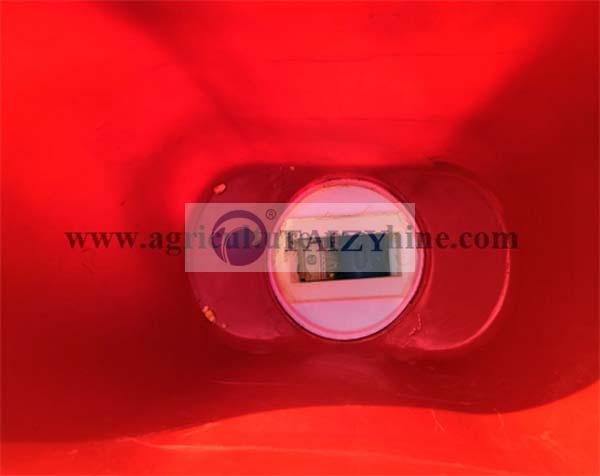

Picture Of The Inside Of The Machine
Picture Of The Inside Of The Machine

Advantage of our machine

  1. Planting corn machine can plant many crops such as Corn, bean, peanut, wheat.
  2. Corn planter for sale is light in weight and easy in operation.
  3. The seeds drop into the field evenly and have high survival rate.
  4. It is easy to change the seed sowing bins so as to plant different crops.
  5. Its structure is simple, which enable it easy to install and disassemble.
  6. Most important, this manual corn planting machine has low price, and everyone can afford it.
Machine Accessories
Machine Accessories

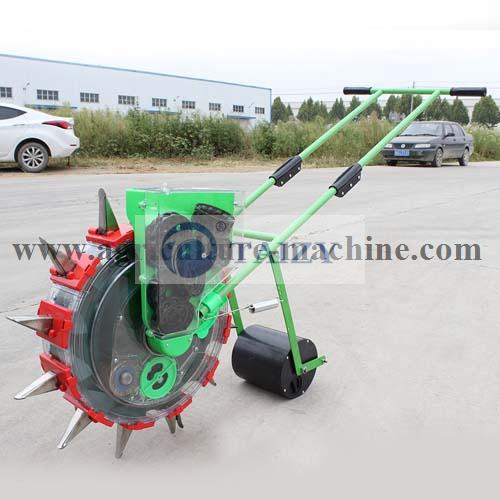

type two:Hand push wheel-type corn planter machine

Product style: 6 models (optional)
Seeding depth: 3.5–7.8 cm.
Seeding amount: 1-3 corn seeds (adjustable)

Machine Detail
Machine Detail

Application: This corn planter abandons the traditional planting modes, and machine can directly inject the seeds into soil. One person can plant 6-8 acres per day with one machine, and the seeding efficiency is increased by three times. It has the characteristics of accurate sowing, neat seedling. What’s more, it is easy to operate with high working efficient.

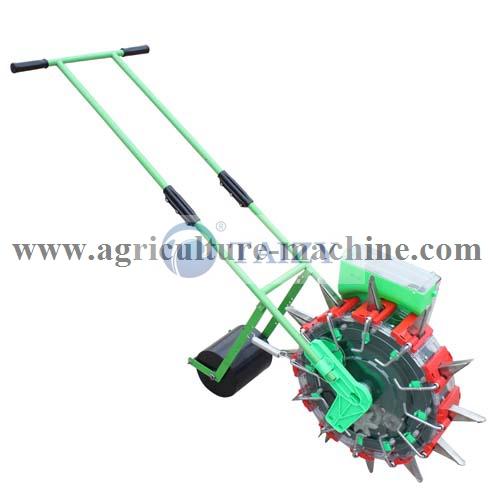

Corn Planter For Sale
Corn Planter For Sale

1. this type corn planter machine has special teeth design that is easy to move in the field due to light weight.
2. Convenient operation. One person can finish all the processes.
3. It is suitable for different areas such as mountains, hillside and terrace etc.
4. Precision seeding. The seedling has high survival rate.
5. Wide application: it can plant be corn, soybeans, etc, and the diameter of seed ranged from 3mm to 15mm.
6. Low price. This corn planter is very cheap, and all farmers can afford it

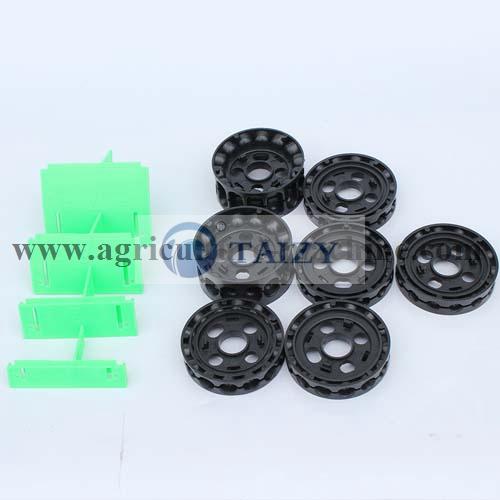

Machine Accessories 02
Machine Accessories 02
Corn Planter
Corn Planter

A successful case of corn planter

In March,2019, 1100 sets peanut plant machines were delivered to Nigeria, and you can click the following lick to view more information about the delivery news.

1100 sets hand-operated corn peanut planter machine have been delivered to Nigeria

Corn Planter Delivery News
Corn Planter Delivery News

FAQ of corn planter

  1. Can corn seeds mix with fertilizer?

No, you can’t, fertilizer will damage the corn seedlings

  1. What does this corn planter machine apply for?

Corn, bean, peanut, wheat.

  1. How many people are needed during operation?

2 person.

  1. Why does one planter can plant different crops?

Because the seeds sowing device can be changed according to the size of different crops.

  1. Can I control the sowing speed?

Yes, of course.
