Nowadays, more and more farmers use peanut planter, because peanuts have a high yield and a wide range of eating. They are nuts that people often eat in daily life. Also, we can squeeze the peanut into oil and make it into condiments with high nutritional value. And we have screw oil press machines, which can process various materials including peanuts. Besides, we also have peanut pickers and peanut harvesters. It is more convenient for you to use these machines together.
We can cultivate peanuts on ridges, film covering, and flat land. And using a peanut planter can improve work efficiency, shorten labor time, and reduce the workload of farmers.
What is peanut planter?
A peanut planter is a professional machine that works especially for planting peanuts. And at present, our peanut planter models are complete. In addition to the basic functions of fertilization, seeding, and soil covering. Also, our machine can have additional functions such as spraying, covering, soil pressing. What’s more, we can also add rotary tillage to meet the different planting needs of customers.
The peanut planter is a three-point suspension-type peanut planting comprehensive operation machine. And this machine must work with a tractor. This peanut planting machine can complete operations such as ditching, ridging, seeding, fertilization, spraying, buried drip irrigation pipe, film mulching, and soil covering at one time.
Also, his peanut planter’s ridge width, ridge height, seeding depth, seed number, row spacing, ridge distance, film width, and hanging position are all adjustable. Compared with manual operation, it can improve work efficiency by more than 20 times and can ensure consistent seeding row spacing, plant spacing, and depth.
Structure of the groundnut planting machine
The structure of the peanut planter includes ditching, fertilizing, sowing, spraying, covering with film, and covering with soil. The peanut planter has high working efficiency, powerful functions, and simple operation.
Twin row peanut planter’s working process
First, the fertilizer in the fertilizer box enters the fertilizing shovel through the outer wheel groove fertilizer applicator. And the shovel digs the soil layer while applying the fertilizer to the soil.
When the planter completes the fertilization process, the seeds in the seed metering device enter the ditch under the drive of the gear. So the seeds in the sowing box enter the planter, and the ditch discharging device sows the peanut seeds evenly in the two ditches while discharging the soil and ditching to complete the sowing process.

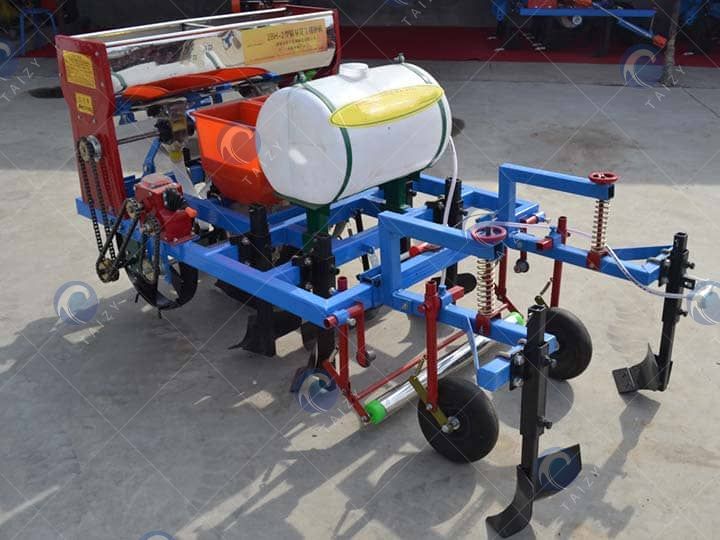

And the herbicide barrel is installed on the front end of the tractor, and the air inlet end is installed on the air outlet of the air storage barrel of the tractor air compressor. The tractor can give it a certain air pressure to achieve the purpose of spraying, thereby completing ridging at one time.
Multi-functional peanut planter’s working video
Peanut planting machine’s model

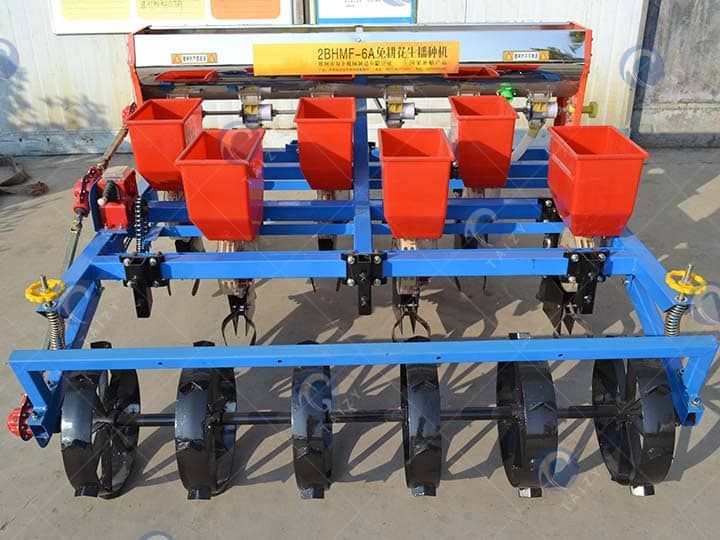

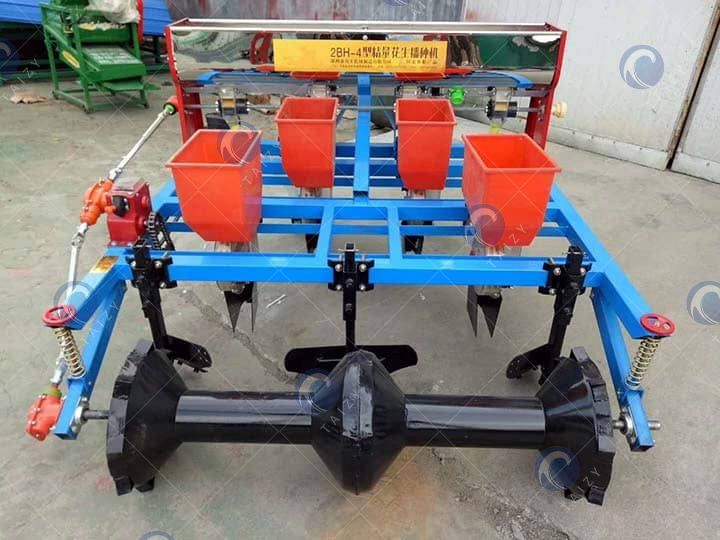

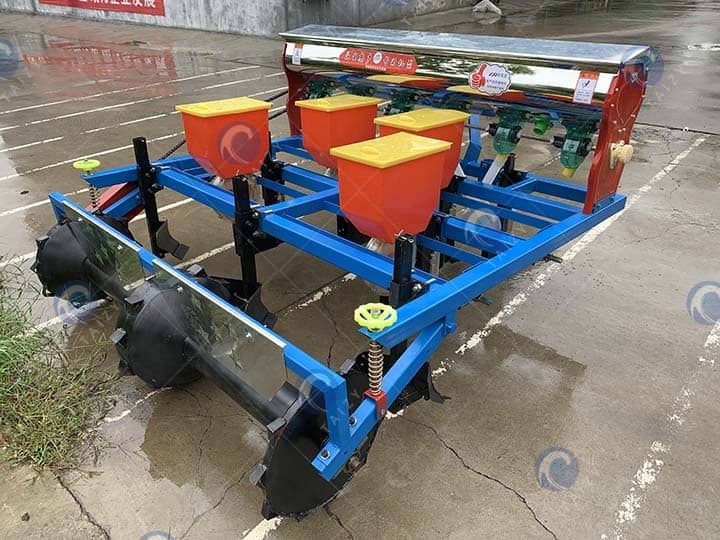

2BH-2 type (one ridge and two rows), 2BH-4 type (two ridge and four rows), 2BH-6 type (3 ridge and 6 rows)
What is the technical parameter of a peanut planter？
|weight||180 kg||350 kg||450 kg|
|seed box capacity||10kg *2||10kg *4||10kg *6|
|No. Of rows||2||4||6|
|space of rows||300-350 mm||300-350 mm||300-350 mm|
|space of seed||80-300 mm||80-300 mm||80-300 mm|
|productivity||0.5-0.8 acre/h||0.8-1.6 acre/h||1.6-3.2acre/h|
What advantages dose the peanut planter machine has?
1. Peanut planting machine can complete multiple processes such as sowing, applying chemical fertilizer, leveling the ridge surface, spraying herbicide, covering with mulching film and pressing seeds, and covering soil on the film at one time.
2. Peanut planter has a high degree of standardization and precision, and the hole spacing meets the agronomic requirements.
3. Plots with poor site preparation quality and weeds or residual crops in the field do not affect normal operations.
4. There is no need to manually shovel the soil with a machine to press the film, which can effectively prevent the film from being removed by a strong wind.
5. The mechanical operation resistance is small, which can reduce energy consumption by about 30%.
1. Can peanut seeds be mixed with fertilizer?
No, you can’t, the fertilizer will damage the corn seedlings
2. How many people are needed for the operation?
3. Can the row spacing and plant spacing be adjusted?
Yes, of course.
