Combined Chaff Cutter and Grinder/Straw Cutter and Grain Grinder

The Introduction of Combined Chaff Cutter and Grain Grinder

This series of chaff cutter and grain grinders realize multiple functions in one machine, which can not only smash grass or chaff but also crush grains. This series of chaff cutter and grain crusher has the characteristics of guillotine, kneading, and crushing. It can process orange stalks, cotton stalks, tangerines, wheat oranges, pasture, other forage grasses, and various grains. It can also crush corn cobs for planting fungi such as mushrooms.

This series of multifunction chaff cutter and grinder can be used for crushing both dry straw and wet purposes and also can crush various coarse and concentrated feeds such as granular, block, straw, and pasture. For example, sugar cane heads, peanut shells, corn cobs, corn stalks, rice straws, white straw, etc. These machines can also crush soaked soybeans, corn, sweet potatoes, and potatoes, and can also be used to crush certain chemical raw materials, Chinese herbal medicine, etc.

The Application of Chaff Cutter and Grinder Combined Machine

This series of machines are mainly suitable for small and medium-sized feed processing plants, feed factories, household use, and also suitable for crushing or pulping in food processing, pharmaceutical, chemical, and other factories.

Applicable Breeding Range

Horses, cattle, sheep, pigs, rabbits, chickens, ducks, geese, and other livestock.

The Applicable breeding range of Chaff cutter and grinder
The Applicable breeding range of Chaff cutter and grinder

The Structure of the Combined Chaff Cutter and Grinder

  1. This series of machines are equipped with movable casters, which can be moved arbitrarily, so the workplace is not fixed.
  2. This series of machines are composed of the upper shell, lower shell, discharge port, feed hopper, angle steel frame, hammer mill, cutter, etc.
  3. When crushing grains, the thickness of the crushed material is controlled by the size of the sieve holes, and different screens can be replaced.
  4. When cutting the grass only, the screen can be pulled out.

Now, We will introduce three different chaff cutter and grain grinders in the series.

Type One: 9ZF-500B Combine Chaff Cutter and Grinder Machine

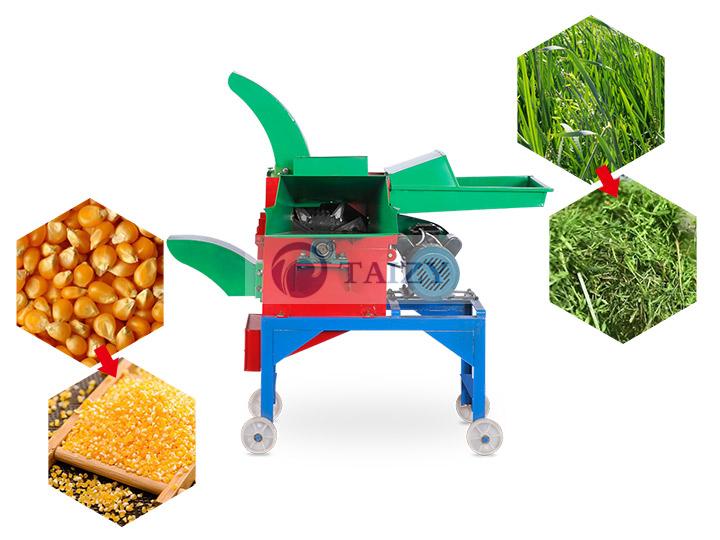

Combine Chaff Cutter and Grinder Machine
Combine Chaff Cutter and Grinder Machine

The Details of 9ZF-500B Chaff Cutter and Grain Crushing Machine

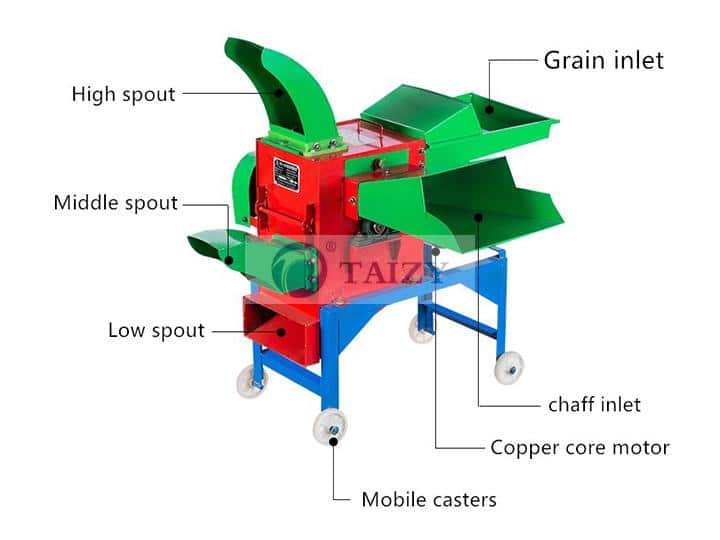

The machine is mainly composed of grain inlet, chaff inlet, copper core motor, high spout, middle spout low spout, mobile casters. When using one of the inlets, block the other inlet to prevent material splashing. Among them, the material from the high-spout outlet is dry, the material from the middle-spout outlet is wet, and the material from the low-spout outlet is crushed grains. When using one of the outlets, the other two outlets can be blocked.

the structure of combine chaff cutter and grinder
the structure of combine chaff cutter and grinder

Internal Blade Structure of Chaff Cutter and Grain Crushing Machine

Thick manganese steel blade, strong and durable

the blade of chaff cutter and grain crusher
the blade of chaff cutter and grain crusher

Machine Parameters of 9ZF-500B Combine Chaff Cutter and Grinder Machine

9ZF-500B Chaff Cutter and Grain Crushing Machine
Matching screen:4 (2/3/10/30) Power:3KW
Motor speed:2800 rpm Machine weight:68KG
Rated voltage:220V Machine output:1200KG/H
Size:1220*1070*1190mm

Type Two: 9ZF-1800 Straw Cutter Machine and Grain Crusher

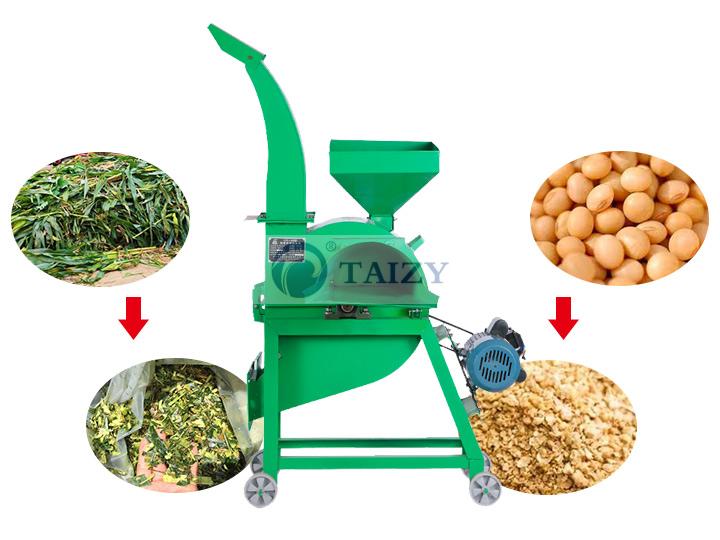

Straw cutter machine and grain crusher
Straw cutter machine and grain crusher

The Details of 9ZF-1800 Straw Cutter Machine and Grain Crusher

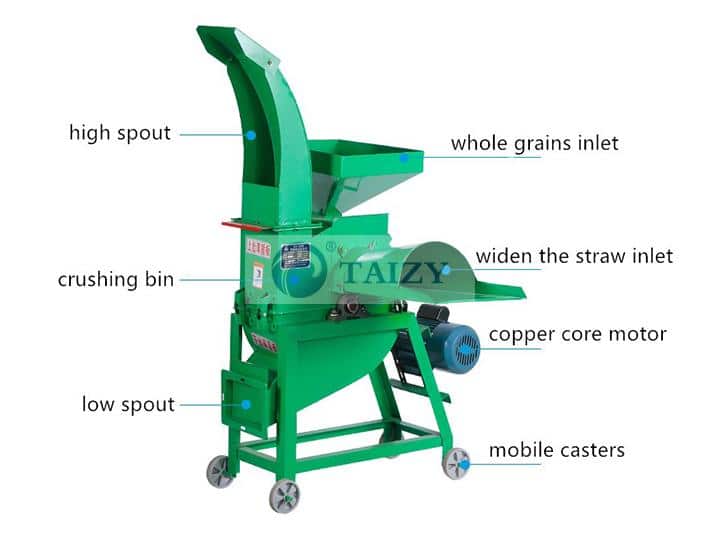

Straw cutter machine and grain crusher
Straw cutter machine and grain crusher

This machine has a grain inlet, widen the straw inlet, copper core motor, high spout, crushing bin, low spout. When using one of the inlets, block the other inlet to prevent material splashing. Among them, the material coming out of the high spout is dry, and the material coming out of the low outlet is crushed grains or wet materials.

Internal Blade Structure of 9ZF-1800 Straw Cutter Machine and Grain Crusher

Thick manganese steel blade, strong and durable

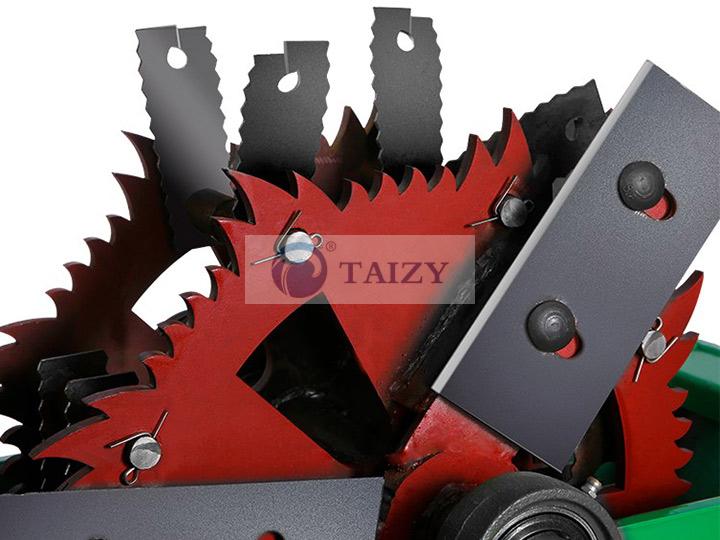

the balde of straw cutter machine and grain crusher
the blade of straw cutter machine and grain crusher

Machine Parameters of 9ZF-1800 Straw Cutter Machine and Grain Crusher

9ZF-1800 Straw cutter machine and grain crusher
Machine model: 9ZF-1800 Power:3KW
Motor speed: 2800 rpm Machine weight: 75KG
Rated voltage: 220V Machine output:1800KG/H
Scope of application: Cows, sheep, pigs, chickens, ducks, rabbits, and other livestock

Type three: 9ZF-1200 Chaff Cutter and Grain Grinder

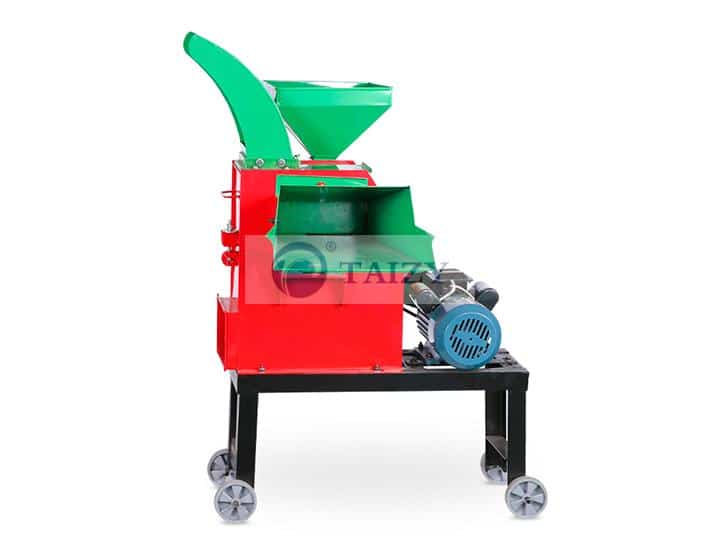

Chaff cutter and Grain Grinder
Chaff cutter and Grain Grinder

The Detailed Structure of 9ZF-1200 Chaff Cutter and Grain Grinder

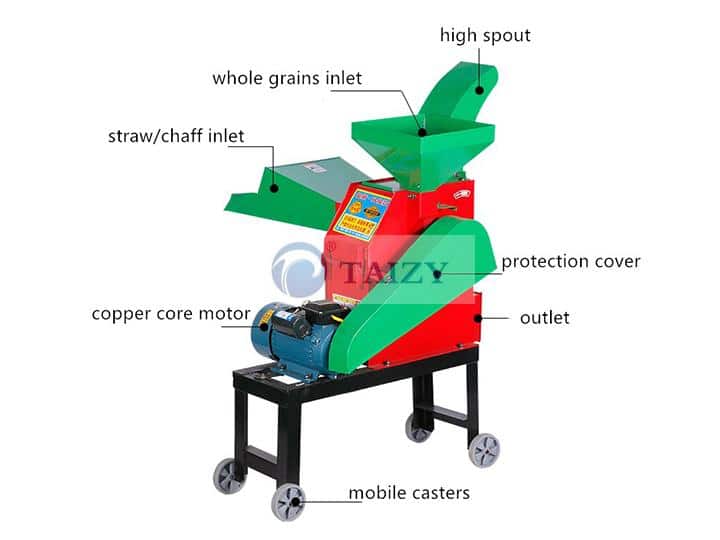

The Structure Chaff cutter and Grain Grinder
The Structure Chaff cutter and Grain Grinder

This machine has a grain inlet, chaff inlet, copper core motor, high spout, protection cover, outlet, mobile casters.

Internal Blade Structure of 9ZF-1200 Chaff cutter and Grain Grinder

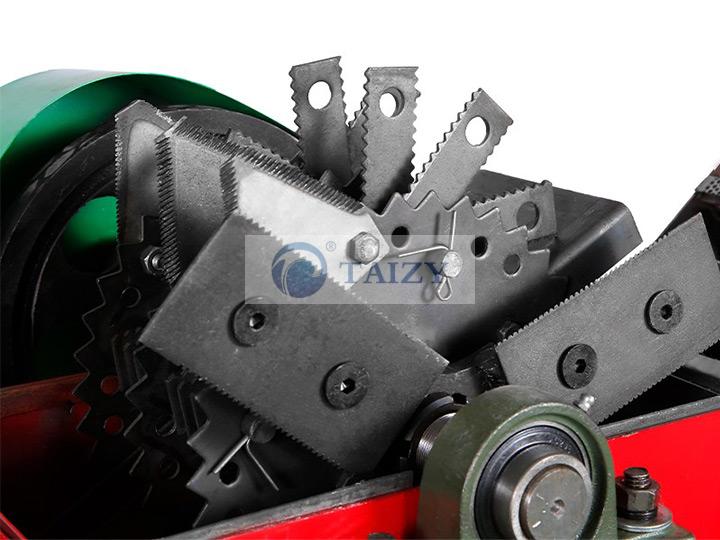

The blade of Chaff cutter and Grain Grinder
The blade of Chaff cutter and Grain Grinder

Machine Parameters of 9ZF-1200 Chaff Cutter and Grain Grinder

9ZR-1200 Chaff cutter and grain crushing machine
Power: 3KW Motor speed: 2800 rpm
Machine weight: 55KG Size: 920*930*1250mm
Machine output:1200KG/H Crushing efficiency:300-500KG/H
Number of blades: 3 Flail knife: 24
Triangular rubbing knife: 18 Number of screens: 4
Feeding method: manual feeding Discharge effect: Soft silky/Powder

The chaff cutter and grinder price

In summary, we have introduced three different chaff cutter and grain grinders in the series, with different outputs, different structures, and different prices. What is your need for the machine, please tell us, we will recommend the most suitable machine for you.
